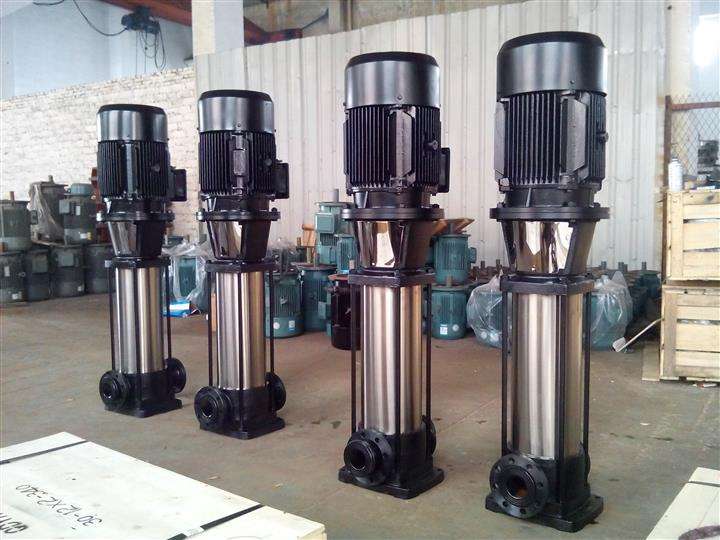

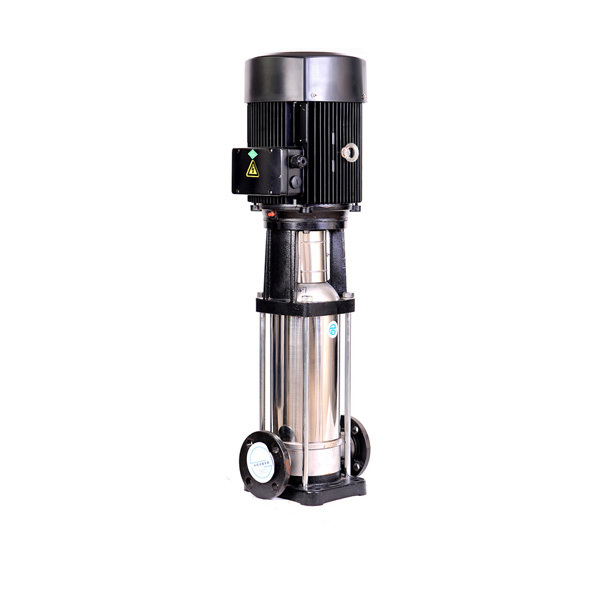

CDL Vertical Multistage Centrifugal Water Pump
CDL vertical multistage centrifugal water pump widely used in water supply or drainage of high-rise building, fire control system, heating system, air-conditioning system, hotels, supermarket, office building, factories, industries and mining enterprises, municipal engineering, spray system, boilers, chemicalindustry, etc.
Description
Introduction:
- CDL vertical multistage centrifugal water pump vertical high head water pump has the advantages of advanced designing, compact structure, energy conversation, small floor space, easy installation, stable performance, etc.
- The high head water pump always be used to supply water for high building, fire fighting system, central heating system, etc.
- Multistage pump is with higher head (discharge pressure) than regular single stage one.
- Widely used in water supply or drainage of high-rise building, fire control system, heating system, air-conditioning system, hotels, supermarket, office building, factories, industries and mining enterprises, municipal engineering, spray system, boilers, chemicalindustry, etc.
Product details:
| Working Principle: | Centrifugal, Multi-stage |
| Main applications: | Water |
| Driver: | Electric motor |
| Power Specs: | 220/380/415V 3phase, 110/220/240v 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Vertical |
| Casing material: | Cast iron/Stainless steel |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0.1 mm |
| Maximum drive rating: | 200KW(270HP) |
| Maximum caliber: | 200mm(8inch) |
| Maximum discharge-side pressure: | 2.5MPa(25bar) |
| Maximum head: | 250m(820ft) |
| Flow rate range: | 6-300m3/h(26.4-1320US.GPM) |
